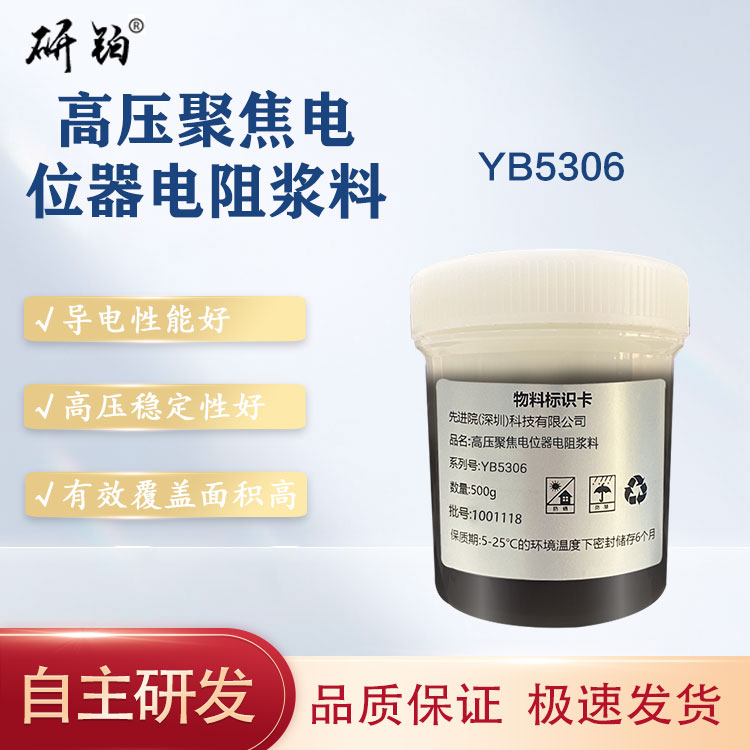

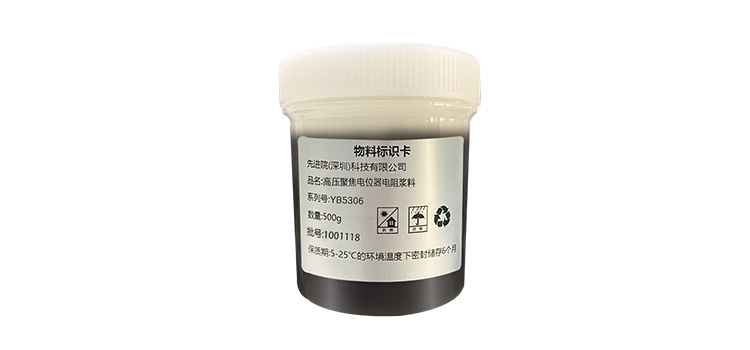

High voltage focusing potentiometer resistor paste is specially designed for high-voltage focusing potentiometers, with strong high-voltage withstand capability and stable resistance value. This slurry is made by mixing high-purity precious metal powder with special glass powder. The resistance layer formed after sintering is dense and uniform, and can withstand high voltage impact without damage. Meanwhile, its excellent conductivity makes potentiometer adjustment more precise and reliable.Advanced Institute of TechnologyPrecious metal paste, can be customized according to needs; Welcome to consult.
0755-22277778
High voltage focusing potentiometer resistor paste is a high-precision electronic material prepared through specific processes, with excellent conductivity, stability, and high voltage resistance. It is widely used in various electronic devices, especially in situations where precise adjustment of resistance values is required, such as high-voltage power supplies, precision instruments, communication equipment, and other fields.
Product Features
High conductivity: Made of high-quality conductive materials such as silver, palladium, etc., it has extremely low resistivity and good conductivity, ensuring smooth signal transmission in circuits.
High stability: Through strict production processes and quality control, the resistance paste can maintain stable resistance values under different environmental conditions without drifting or failure.
High voltage resistance: In response to the special requirements of high-voltage focusing potentiometers, resistor paste has excellent high voltage resistance performance and can withstand high voltages without being broken down or damaged.
Good adhesion: It has good adhesion with the substrate material, ensuring that the resistance paste is not easily peeled off or detached during use, thereby ensuring the long-term stable operation of the equipment.
Easy to process: Resistance paste has good fluidity and printability, and can be easily made into various complex resistance patterns through screen printing and other processes.

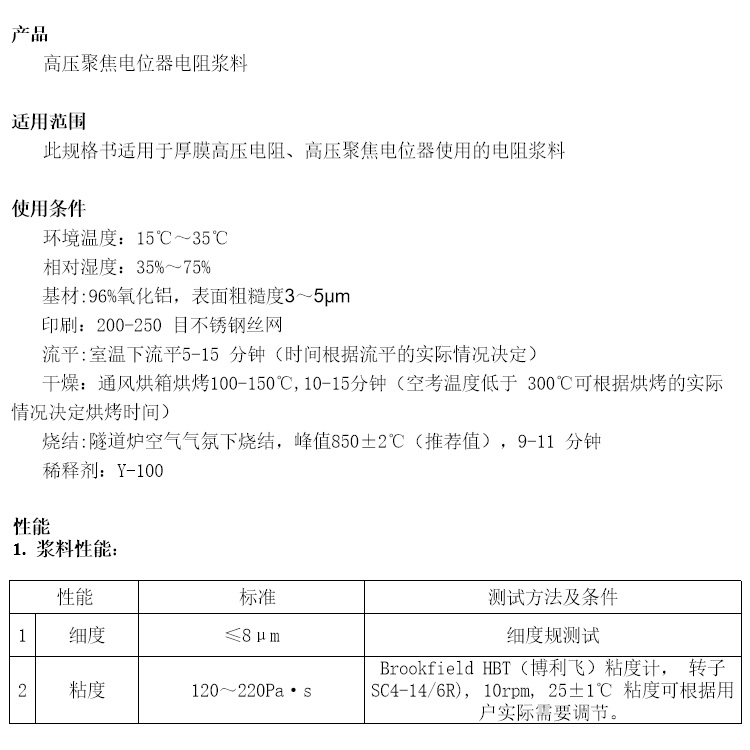

Production process
Fineness: The fineness of high-voltage resistor slurry is generally controlled within a certain range, such as ≤ 8 μ m, to ensure the uniformity and stability of the slurry.
Viscosity: Viscosity is an important indicator for measuring the fluidity of slurry, and the viscosity of high-voltage resistance slurry is usually between 100-200 Pa · s.

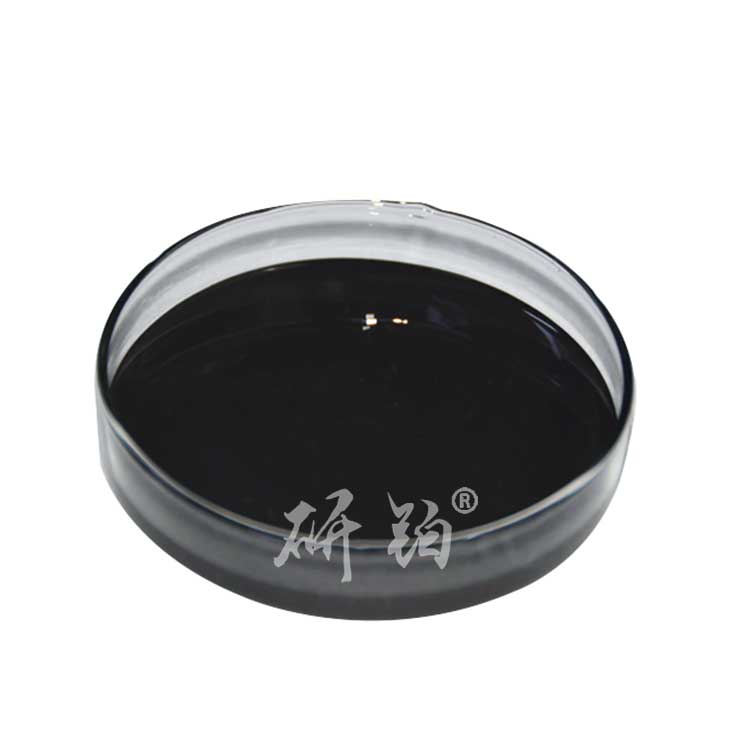

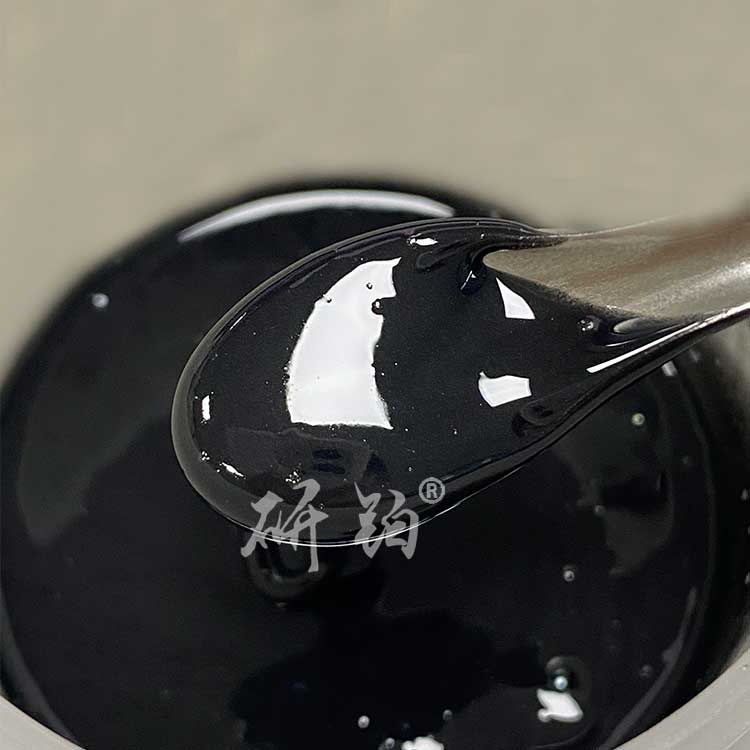

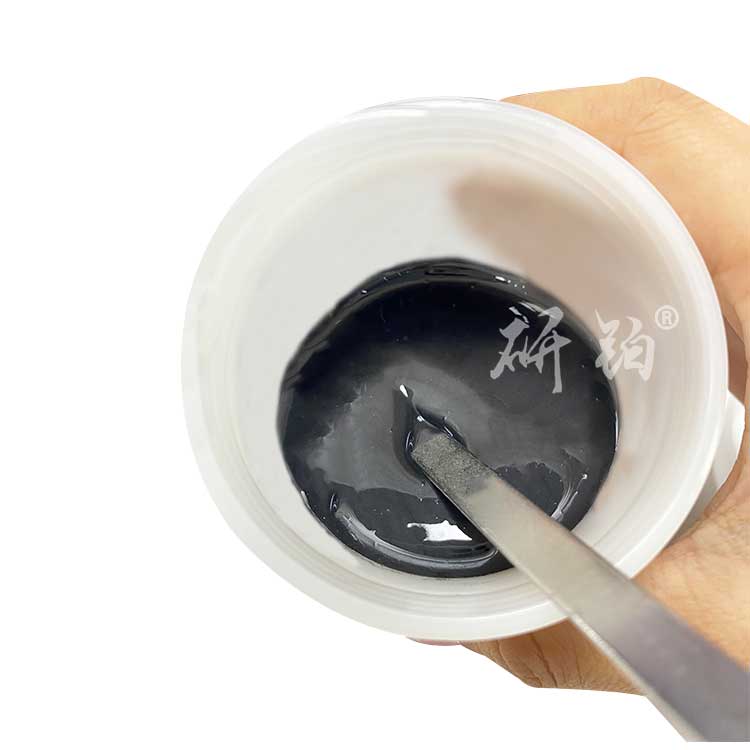

Color tone and appearance: High voltage resistor paste is usually light green in color, with a smooth and dense appearance, free of impurities and bubbles.
Workshop Display
