Summary of commonly used die-cutting materials! Die cutting masters no longer have to worry about not being able to find them

1、 Adhesive type

Electronic tape, medical tape, double-sided tape mainly produced by 3M Company in the United States, such as 94719009944855256, etc. Adhesive products mainly based on TESA, such as 49725192868634. Adhesives mainly composed of NITTO, such as 5302A, 57135000NS, etc.

Generally, adhesives are divided into two categories: organic adhesives and inorganic adhesives. The above only introduces several products of various adhesive production companies. Adhesive production companies led by 3M in the United States have developed hundreds of types of adhesives for various industrial products around the world, each with its own properties and uses.

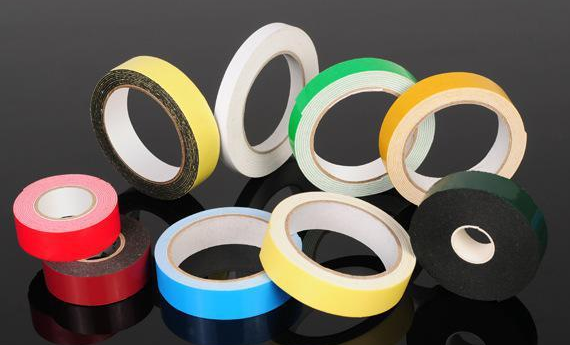

Double sided tape can be divided into two types in terms of its existence: one without substrate and the other with substrate. Without a substrate, the adhesive is directly applied to the release paper, which is usually very thin, has great extension and flexibility, and is prone to sticking back and deformation during die-cutting processing. Such as 3M468 and 467. A substrate is a double-sided coating of adhesive on a layer of PET film, cotton paper, or non-woven fabric. PET based products are easier to process, while cotton paper and non-woven substrates are more difficult to process. The edges are prone to visible fuzz, deformation, and poor elasticity.

There are two common types of adhesive classification:

One type is acrylic adhesive, which is widely used to bond materials with high surface strength such as hardware, plastic, glass, etc;

One type is silicone rubber, which can be directly bonded to rubber or silicone materials without the need for additional treatment.

The application objects of different adhesive systems are also different. Currently, in the market, the adhesive paper is made of one side of acrylic adhesive and the other side of silicone rubber, so that one side can stick PC and the other side can stick silicone keys. If acrylic adhesive is used to stick silicone keys, special chemicals need to be used to treat the silicone key material, change its surface strength, and then stick it.

2、 Paper products

Paper is one of the indispensable materials in the die-cutting production process. It can effectively cover the separated double-sided tape, so that the mold will not be stuck by the tape during cutting.

Generally, paper is divided into two sides, one rough and the other fine. The rough side has strong adhesion, while the fine side has weak adhesion. Generally, the weak adhesion side is allowed to contact the adhesive, which can effectively control the adhesive. Release paper is divided into coated paper and non coated paper based on whether it is coated or not. Coated paper is divided into single plastic paper and double plastic paper. Non coated paper is divided into: Gracin release paper CCK。 There are also many types of paper: G120, G540, 80G single-sided Gracin, Meiwen paper (a type of sticky soft paper), A550，A770， 74 grams of blue Gracin and other types of paper also have different auxiliary uses, which need to be determined according to the design of the product process.

1. GLASSINE/SCK0: The base paper is dense, uniform, and has good internal strength and transparency. It is a commonly used material for making barcode labels, stickers, tapes, or adhesive industrial products, especially suitable for rotary and flat die cutting.

2. Coated paper (PEK): Kraft paper with PE film, competitively priced, combining the characteristics of Gracin paper and CCK paper. It is flat, not easily deformed, has good toughness, is resistant to punching and cutting, and can withstand high-strength mechanical pressure. It is an ideal industrial paper. Coated paper is suitable for advertising materials, stickers, electronic die-cutting, etc.

The release paper on the original double-sided tape is mostly double-sided release paper, and the release paper used as auxiliary materials is mostly single-sided release paper. Like release film, release paper also has a weight difference. Generally, the release force is confirmed by material certification materials, or by testing the weight based on experience before selection. Some factories produce products such as "80G Gracin", and the 80G in its product name may not necessarily be its release force, but may be the specification of the paper. Pay attention to identifying and mastering. There is also a type of release paper that, in addition to being coated with release agents, has a coated surface. This type of release paper is mostly used for bonding with protective films and has a low density. The material is loose and not as stiff as Gracin paper. When used as an auxiliary material for punching and cutting, the edges are prone to burrs, which is not conducive to waste disposal. The protective film is usually half broken, and the knife marks should not be too deep.

3、 Wire mesh type

Wire mesh is a densely woven black material that is soft and comfortable like cloth. It is generally divided into two types: waterproof and dustproof, with model B090HY, B010, and some metal wire mesh.

4、 PET type

This material is a plastic product with different double-sided characteristics, including strong and weak adhesive surfaces. The use of PET is similar to that of paper, and the material is selected based on the product.

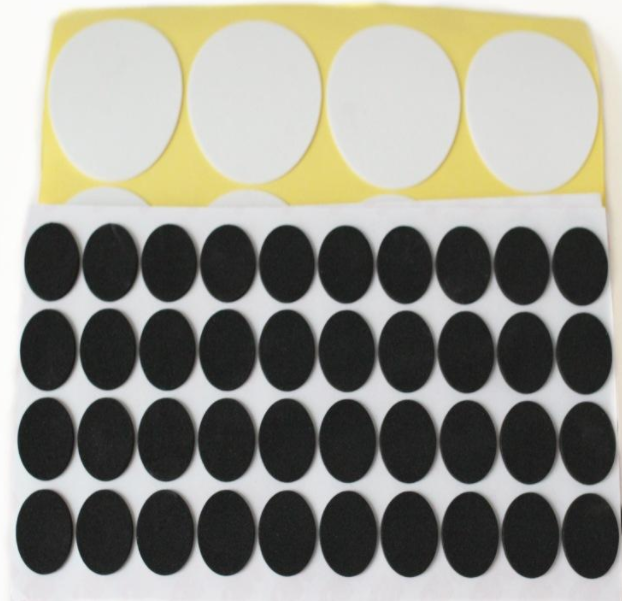

5、 Foam type

A black material as soft as cotton, the thickness of the foam varies depending on the product model. Foam is divided into two types: organic cotton and inorganic cotton. Foam has a wide range of uses, mainly for mobile phones, computers, and all electronic products with screens, with practical effects such as shock absorption and shock absorption.
